Industrial Washing Machine | SI Series | B&C Technologies

SI Series Industrial Washer

Our SI line of Softmount Industrial Freestanding washer extractors provides industrial strength washer-extractors with unbeatable pricing. Optional one and two way tilting make loading and unloading simple and efficient. With capacities from 110 to 300 pounds (50 to 200kg), we have the right sizing for you application. High extraction speeds mean less time in the dryer, yielding tremendous energy and time savings.

Features at a glance

  • Standard 3 year warranty
  • 320G extract force which reduces energy consumption and increases savings
  • Advanced Microcomputer, PC programmable, programs transferred via bluetooth
  • 5 Compartment supply dispenser for dry and liquid chemicals
  • 5 connections for automatic chemical injection
  • Chemical hold input
  • Stainless Steel cabinet. All parts in contact with the wash solution made of 304 (18/8) stainless steel.
  • Inverter drive - programmable variable speed
  • Single motor drive
  • Robust spring suspension
  • Cool down
  • Programmable water levels
  • Programmable water temperature
  • Rear drain connection

Markets

  • Hotel, motel, and other commercial laundry applications
  • Hospitals
  • Correctional facilities
  • Industrial laundries
  • Upper floor laundry applications
  • Anywhere a commercial washing machine is needed

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

SI-110

SI-110 Basic Specifications

SI-110 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity110 lbs50 kg
Cylinder Volume15.56 cu ft440.6 liters
Width55.39 in1407 mm
Depth66.9 in1699 mm
Height68.3 in1735 mm
Weight4470 lbs2031.8 kg
G Force320
Door Opening20 in508 mm
Door Height31.5 in800 mm

Layout and Full Details

SI-135

SI-135 Basic Specifications

SI-135 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity135 lbs61.4 kg
Cylinder Volume21 cu ft594.7 liters
Width64.17 in1630 mm
Depth70.86 in1800 mm
Height75.39 in1915 mm
Weight5425 lbs2465.9 kg
G Force320
Door Opening24.5 in622 mm
Door Height33.3 in846 mm

Layout and Full Details

SI-200

SI-200 Basic Specifications

SI-200 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity200 lbs90.9 kg
Cylinder Volume30.8 cu ft872.2 liters
Width64.17 in1630 mm
Depth70.86 in1800 mm
Height75.39 in1915 mm
Weight7765 lbs3529.5 kg
G Force320
Door Opening24.5 in622 mm
Door Height35.4 in899 mm

Layout and Full Details

SI-275

SI-275 Basic Specifications

SI-275 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity275 lbs125 kg
Cylinder Volume41.8 cu ft1183.6 liters
Width74.01 in1880 mm
Depth86.64 in2201 mm
Height85.03 in2160 mm
Weight9560 lbs4345.5 kg
G Force320
Door Opening28.5 in724 mm
Door Height36.5 in927 mm

Layout and Full Details

SI-300

SI-300 Basic Specifications

SI-300 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity300 lbs136.4 kg
Cylinder Volume46.7 cu ft1322.4 liters
Width74.01 in1880 mm
Depth90.55 in2300 mm
Height85.03 in2160 mm
Weight10560 lbs4800 kg
G Force320
Door Opening28.5 in724 mm
Door Height36.5 in927 mm

Layout and Full Details

Get in touch!

Have any questions about the SI Series? We'd love to hear from you.

Superior Freestanding Construction
SI Series Industrial Washer Robust Construction

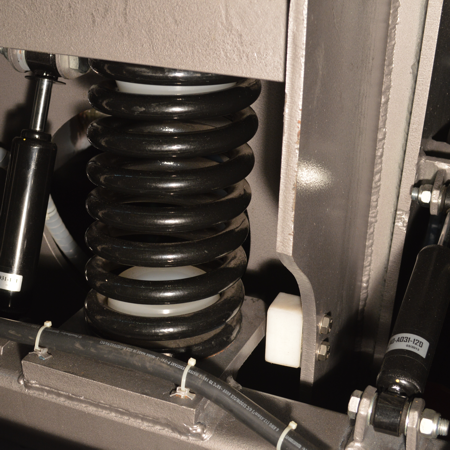

Soft Mount Construction

  • Withstands the rigorous demands of continuous operation
  • Tuned suspension system with heavy duty springs and industrial shock absorbers
  • Easy installation with no special foundation requirements
  • Integrated lifting bars for easy installation, can be moved with a pallet jack
  • Optional air cushion suspension system
  • Optional 1 or 2 way tilting available

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

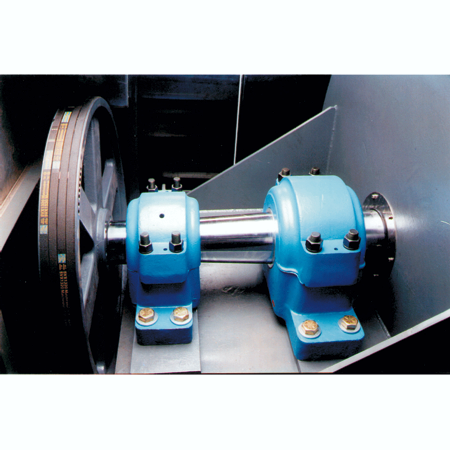

Long Lasting Bearing Design
SI Series Industrial Washer Powerful Bearing Design

Solid Bearing Housing - High Quality Bearings and Seals

  • The ultimate in durable design
  • Cast steel housings
  • SKF spherical roller bearings
  • Triple V-ring seal for extra protection - spare set in place
  • Dry zone bearings are not damaged should seals leak
  • Hard chromed high strength shaft

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

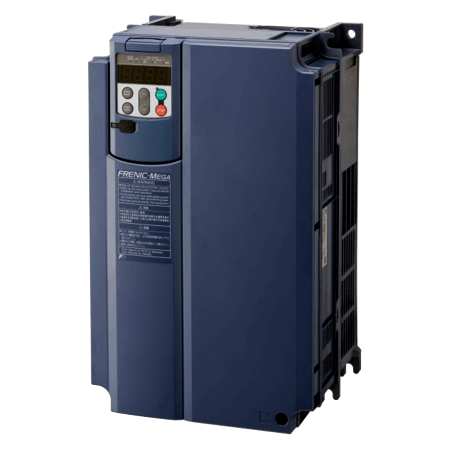

Standard Inverter Drive
SI Series Industrial Washer Inverter Drive

Robust Energy Efficient Inverter Drive

  • Incredibly flexible operation
  • Excellent protection for the motor
  • Latest technology for precise speed control
  • Single motor drive without clutches and complication
  • 320G high speed extract

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Advanced Microprocessor Control
SI Series Industrial Washer Advanced Control

The FM7

  • Easy to use
  • 30 wash programs
  • Trouble-free
  • 8 chemical signals
  • Chemcical hold input
  • Programmable water levels, speeds and more
  • Incredibly flexible - handles demanding operations
  • Wetcleaning functionality built in - no special options required

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

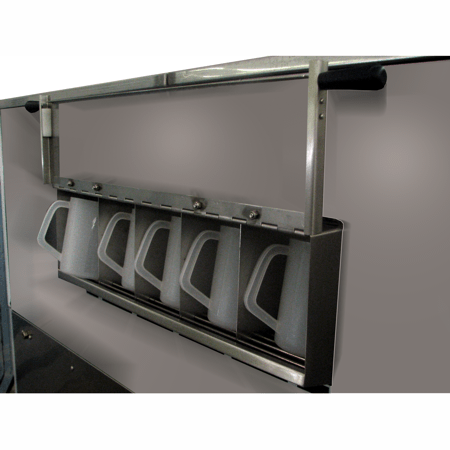

Standard 5 Cup Supply Dispenser
SI Series Industrial Washer Supply Dispenser

Supply Dispenser

  • Automatic flushing according to programming
  • 5 cup dispenser standard
  • Convenient height for easy access
  • 8 chemical signals standard

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

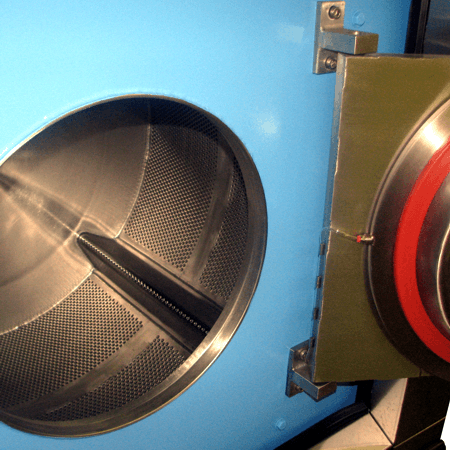

Large Door Opening
SI Series Industrial Washer Door Opening

Large Door Opening and Safe Door Interlock

  • Opens nearly 180 degrees for easy loading/unloading
  • Door and hinge made of 304 stainless steel
  • Air operated silicon door gasket for extra tight seal and long life
  • Safe, simple, reliable door lock system
  • Optional 40 inch loading door on SI-275 and SI-300

Page 1

Click the × in the upper right corner or anywhere outside this box to close.

×

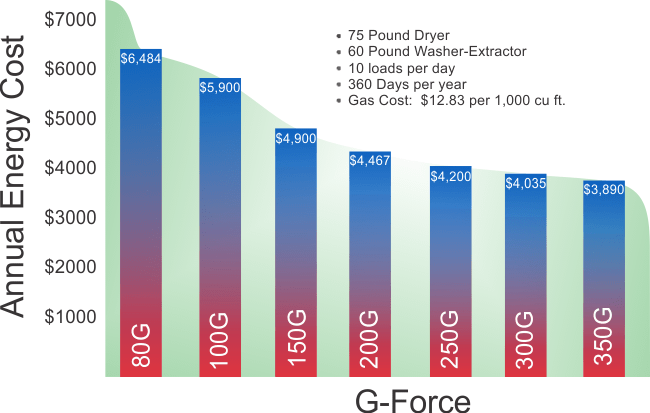

High Speeds Save Money

B&C Commercial and Industrial Washers Save Money

Lower speed washers cost you money over the life of the equipment - the slower the extract speed, the more water left in the goods. That excess moisture then needs to be removed in the dryer, taking more time and energy and ultimately costing a tremendous amount. All B&C washers feature at least 200G extracts: High speeds really do save money!
