Industrial Washing Machine | SA Series |B&C Technologies

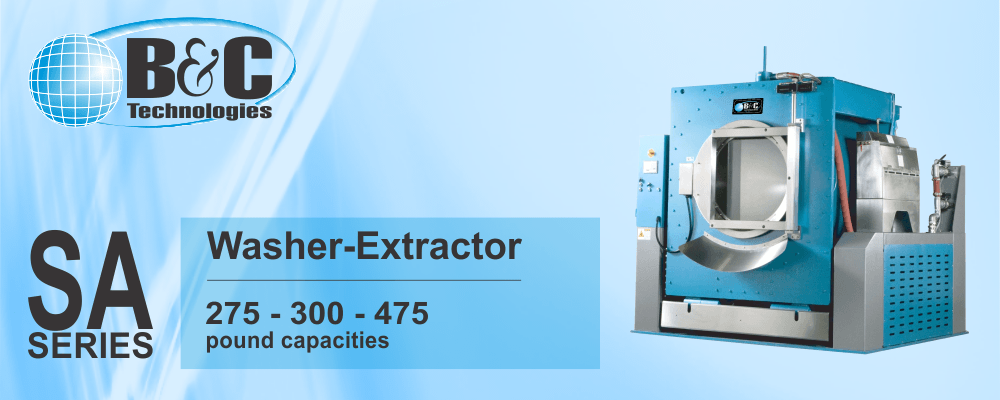

SA Series Industrial Washer

Our SA line of Softmount Automatic Freestanding washer extractors provides industrial strength washer-extractors with unbeatable pricing. Standard two way tilting make loading and unloading simple and efficient. With capacities from 275 to 475 pounds (125 to 215kg), we have the right sizing for you application. High extraction speeds mean less time in the dryer, yielding tremendous energy and time savings.

Features at a glance

  • 320G extract force which reduces energy consumption and increases savings
  • Standard 2-way tilting
  • Standard 40 inch door
  • Direct steam heating
  • Advanced Microcomputer, PC programmable, programs may be transferred with memory cards
  • 5 Compartment supply dispenser for dry and liquid chemicals
  • 5 connections for automatic chemical injection
  • Chemcical hold input
  • Stainless Steel cabinet. All parts in contact with the wash solution made of 304 (18/8) stainless steel.
  • Inverter drive - programmable variable speed
  • Single motor drive
  • Robust spring suspension or airbags (standard on SA-475)
  • Cool down
  • Programmable water levels
  • Programmable water temperature
  • Rear drain connection

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

SA-275

SA-275 Basic Specifications

SA-275 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity275 lbs125 kg
Cylinder Volume41.8 cu ft1183.6 liters
Width74.01 in1880 mm
Depth86.64 in2201 mm
Height85.03 in2160 mm
Weight9560 lbs4345.5 kg
G Force320
Door Opening28.5 in724 mm
Door Height36.5 in927 mm

Layout and Full Details

SA-300

SA-300 Basic Specifications

SA-300 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity300 lbs136.4 kg
Cylinder Volume46.7 cu ft1322.4 liters
Width74.01 in1880 mm
Depth90.55 in2300 mm
Height85.03 in2160 mm
Weight10560 lbs4800 kg
G Force320
Door Opening28.5 in724 mm
Door Height36.5 in927 mm

Layout and Full Details

SA-475

SA-475 Basic Specifications

SA-300 320G Softmount Washer/Extractor
UnitsUSMetric
Capacity475 lbs216 kg
Cylinder Volume75.3 cu ft2132 liters
Width91.8 in2332 mm
Depth106.3 in2700 mm
Height108.9 in2766 mm
Weight18500 lbs8409 kg
G Force320
Door Opening40.2 in1021 mm
Door Height47.25 in1200 mm

Layout and Full Details

Get in touch!

Have any questions about the SA Series? We'd love to hear from you.

Superior Freestanding Construction
SA Series Industrial Washer Robust Construction

Soft Mount Construction

  • Withstands the rigorous demands of continuous operation
  • Tuned suspension system with heavy duty springs and industrial shock absorbers (SA-275 and SA-300)
  • Easy installation with no special foundation requirements
  • Optional air cushion suspension system (Standard on SA-475)
  • Standard 2 way tilting

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

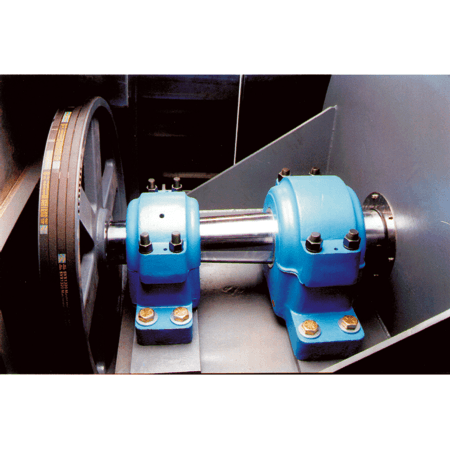

Long Lasting Bearing Design
SA Series Industrial Washer Powerful Bearings

Solid Bearing Housing - High Quality Bearings and Seals

  • The ultimate in durable design
  • Cast steel housings
  • SKF spherical roller bearings
  • Triple V-ring seal for extra protection - spare set in place
  • Dry zone bearings are not damaged should seals leak
  • Hard chromed high strength shaft

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

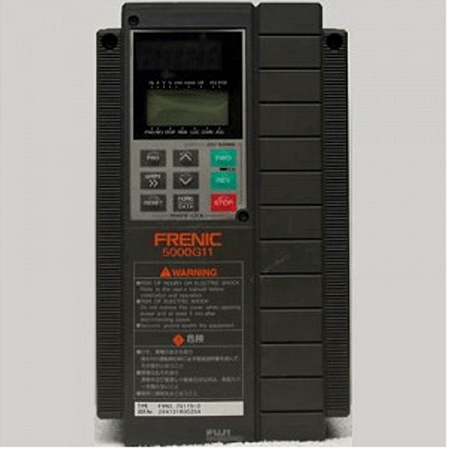

Standard Inverter Drive
SA Series Industrial Washer Inverter Drive

Robust Energy Efficient Inverter Drive

  • Incredibly flexible operation
  • Excellent protection for the motor
  • Latest technology for precise speed control
  • Single motor drive without clutches and complication
  • 320G high speed extract

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Advanced Microprocessor Control
SA Series Industrial Washer Advanced Control

The FM7

  • Easy to use
  • 30 wash programs
  • Trouble-free
  • 8 chemical signals
  • Chemcical hold input
  • Programmable water levels, speeds and more
  • Incredibly flexible - handles demanding operations
  • Wetcleaning functionality built in - no special options required

WashTools Programming App Now Available

You can now download our easy to use Android programming app from the Google Play Store

FM7 Programmimg App

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×
Optional 5 Cup Supply Dispenser
SA Series Industrial Washer Supply Dispenser

Supply Dispenser

  • Automatic flushing according to programming
  • 5 cup dispenser standard
  • Convenient height for easy access
  • 8 chemical signals standard

Next...

Click the × in the upper right corner or anywhere outside this box to close.

×

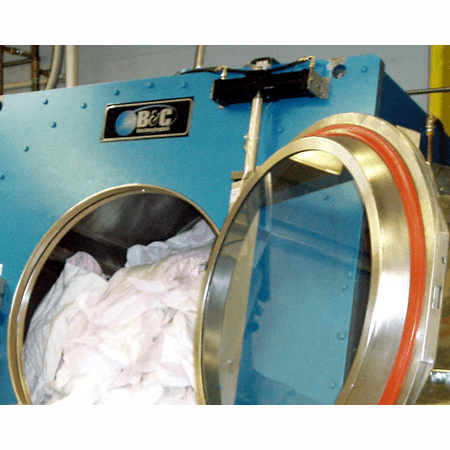

Large Door Opening
SA Series Industrial Washer Large Door Opening

Large Door Opening and Safe Door Interlock

  • Opens nearly 180 degrees for easy loading/unloading
  • Door and hinge made of 304 stainless steel
  • Air operated silicon door gasket for extra tight seal and long life
  • Safe, simple, reliable door lock system
  • Hydraulic 40 inch loading door standard

Page 1

Click the × in the upper right corner or anywhere outside this box to close.

×

High Speeds Save Money

B&C Commercial and Industrial Washers Save Money

Lower speed washers cost you money over the life of the equipment - the slower the extract speed, the more water left in the goods. That excess moisture then needs to be removed in the dryer, taking more time and energy and ultimately costing a tremendous amount. All B&C washers feature at least 200G extracts: High speeds really do save money!
